Overview UI & Screens

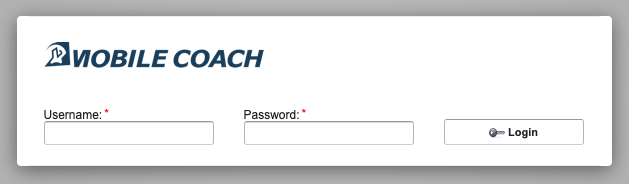

Login

The base URL of the MC Web Designer is https://[YOURDOMAIN]/MC/admin. There you can see a login window. If you forgot your password you can write your admin.

Login

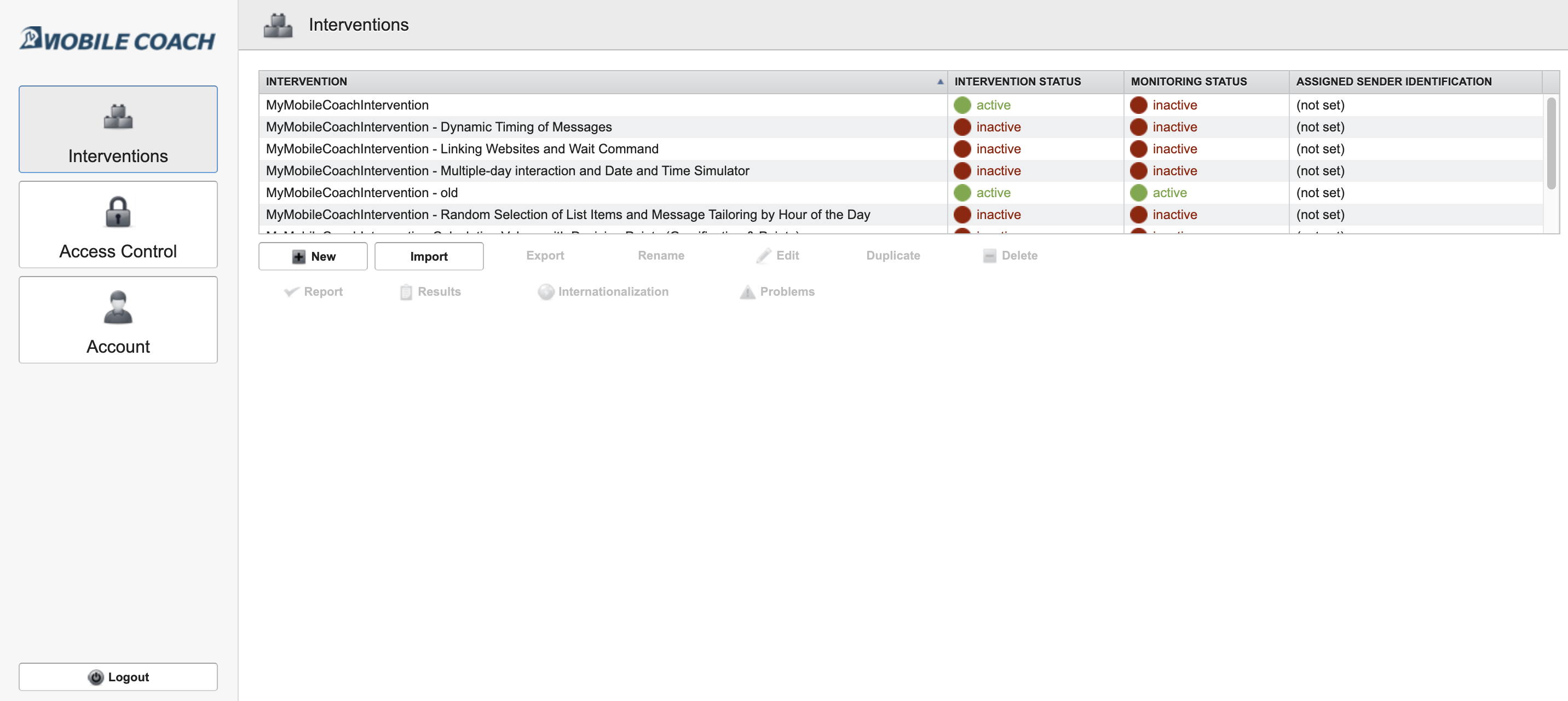

Main View

If the Login was successful, you can see up to three sections (depends on your role).

Main View

Interventions --> Overview of all interventions. Here is where the magic happens.

Access Control --> If you’re an admin, you can add new accounts and define roles. See Access Control

Account --> You can change your password here. If you’re admin you can also unlock interventions.

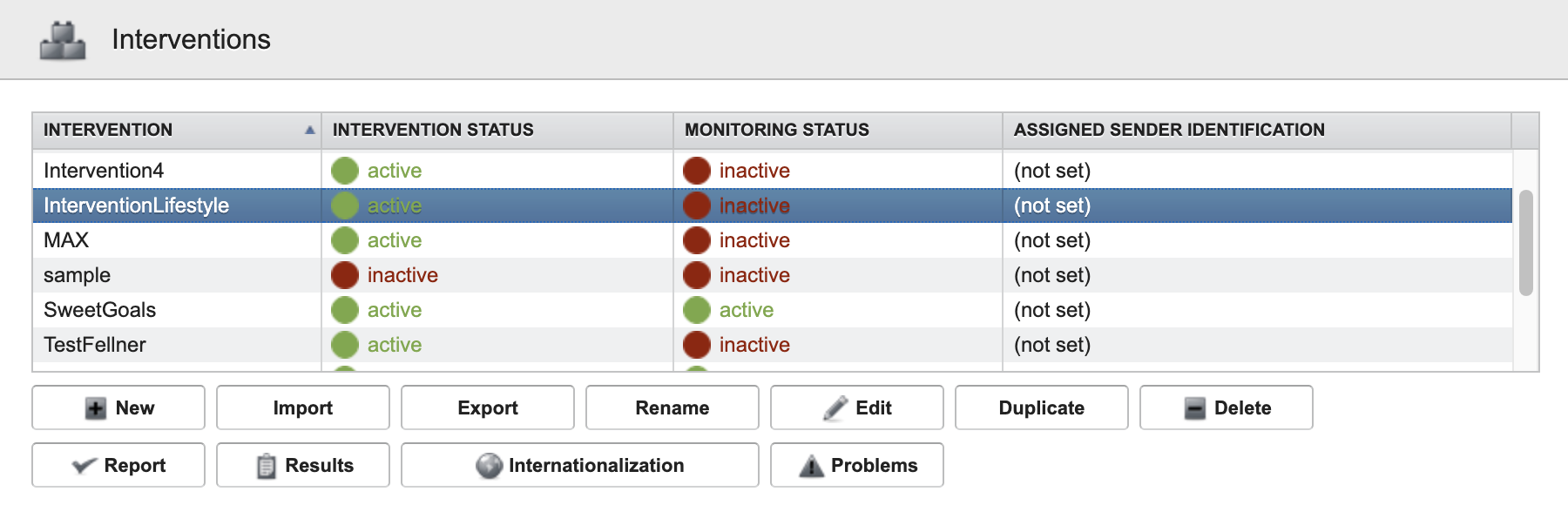

Intervention List View

In the 'Intervention List View' you can see all interventions you have access to and their status.

Intervention List

Action ButtonExplanation
NewCreate a new intervention.
ImportImport an “.mc” file
ExportExport the intervention as an “.mc” file. If you want to export/import it on another server, be aware that the MC Web Designer needs to be the same version. Otherwise there could be conflicts.
RenameRename an intervention
EditEdit the intervention
DuplicateDuplicate an intervention. Everything is copied unless all participants/results. Can be used for a version history.
DeleteDeletion of an Intervention. Please make backups, that if you accidentally delete an intervention, you can restore it.
ReportDownload of an HTML file, where you can view the Settings, Surveys, Rules, Message Groups and Messages and Micro Dialogs. Could give a nice overview, but needs to be updated.
ResultsShowing the results/information about all participants of the intervention. (See Exporting Data)
Internationalizationtodo
Problemstodo

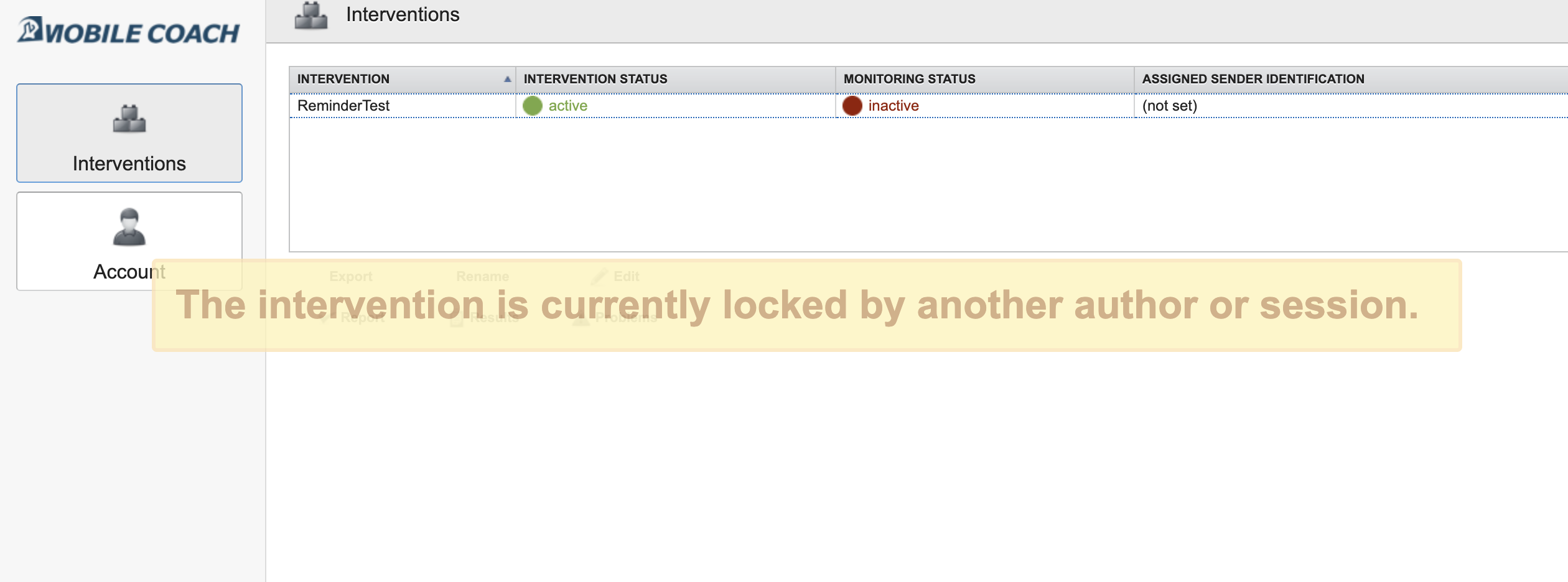

Locked intervention

Parallel work is currently not supported, so only one person can work on an intervention at a time. So, if you see this alert, another author or admin is in the intervention. If you’re completely sure, that nobody is working on it right now but it is still locked, you can (if you’re admin) reset all locks under the “Account” screen.

Intervention locked

Intervention Detail View

If you edit an intervention you will see a lot of new options. We'll give an overview about every Intervention Detail View tab here. For more detailed information about the Micro Dialogs, Rules etc. you can find separate docs in the menu on the left.

Intervention and Monitoring states

In the top right of the screen you can see two buttons Activate Intervention and Activate Monitoring. These states are very important for your intervention.

Activate/Deactivate Intervention: If this is active, you can’t edit the 'Basic Settings and Modules' options. This is an additional layer of security. You shouldn't change there something in a running intervention.

Activate/Deactivate Monitoring: If this is active, the intervention is running. The mobile app can connect to the server and exchange messages. Therefore all possible intervention changes are locked. To be able to change e.g. a micro dialog, you have to deactivate the monitoring. During an ongoing intervention, changes should only be made at off peak times. This reduces interruptions for the participants.

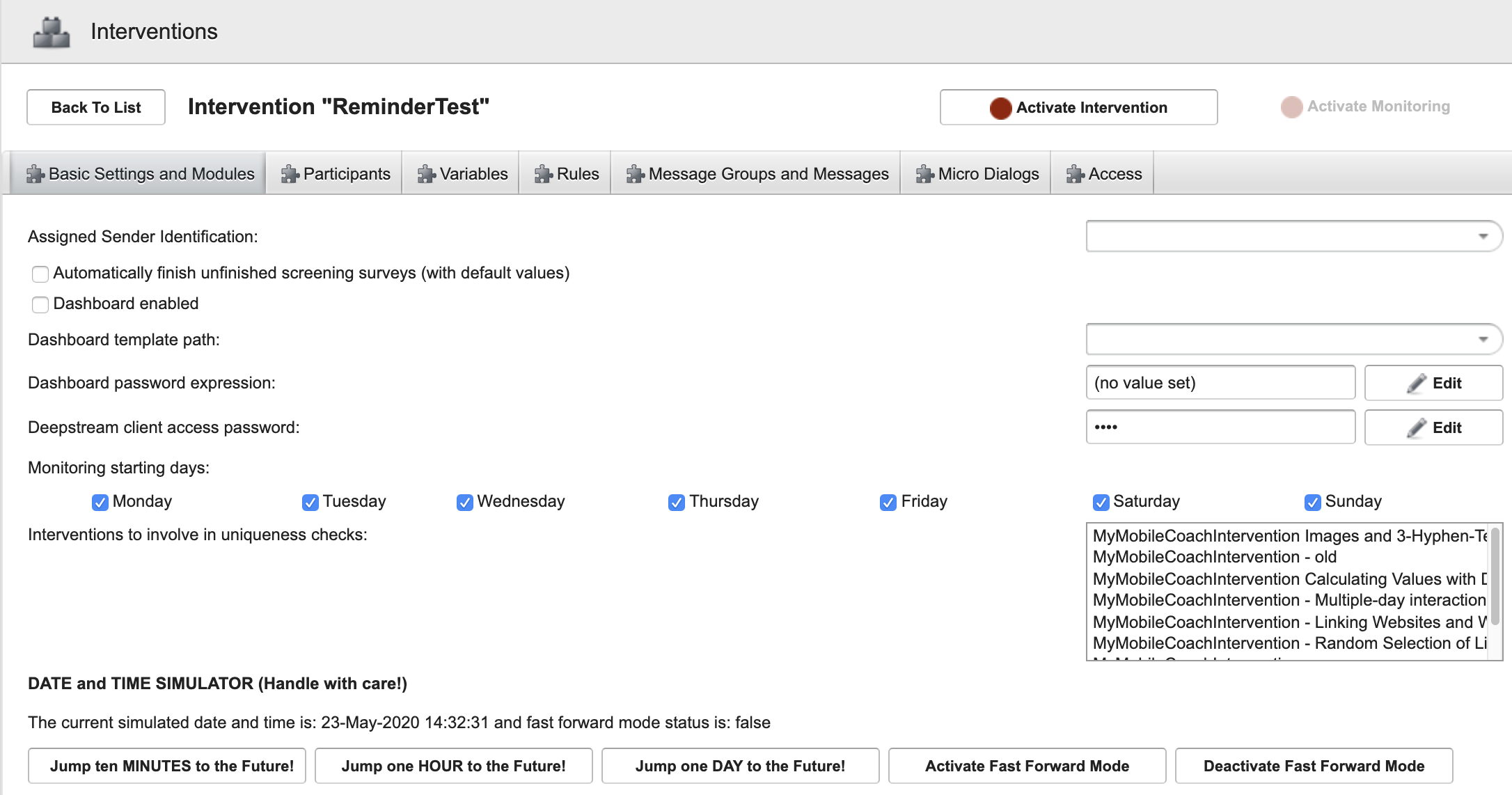

Basic Settings and Modules

In this tab you can set up the basic settings of the intervention.

Basic Settings and Modules

Options

OptionExplanation
Assigned Sender IdentificationYou can add a phone number here from a SMS provider, that will send all the outgoing SMS in the intervention.
Automatically finish unfinished screening surveys (with default values)CURRENTLY NOT IN USE.
Dashboard enabledCURRENTLY NOT IN USE. Please be aware, this is not the “dashboard/cockpit”. The Cockpit has to be set up additionally.
Dashboard template pathCURRENTLY NOT IN USE.
Dashboard password expressionCURRENTLY NOT IN USE.
Deepstream client access passwordYou need this password to connect the app with the intervention. The creator of your MobileCoach Mobile App has to add this password in the AppConfig file.
Monitoring starting daysAll days must be selected for the intervention to run correctly. These options will be revised next time.
Interventions to involve uniqueness checkstodo

Date and Time Simulator

[TODO]

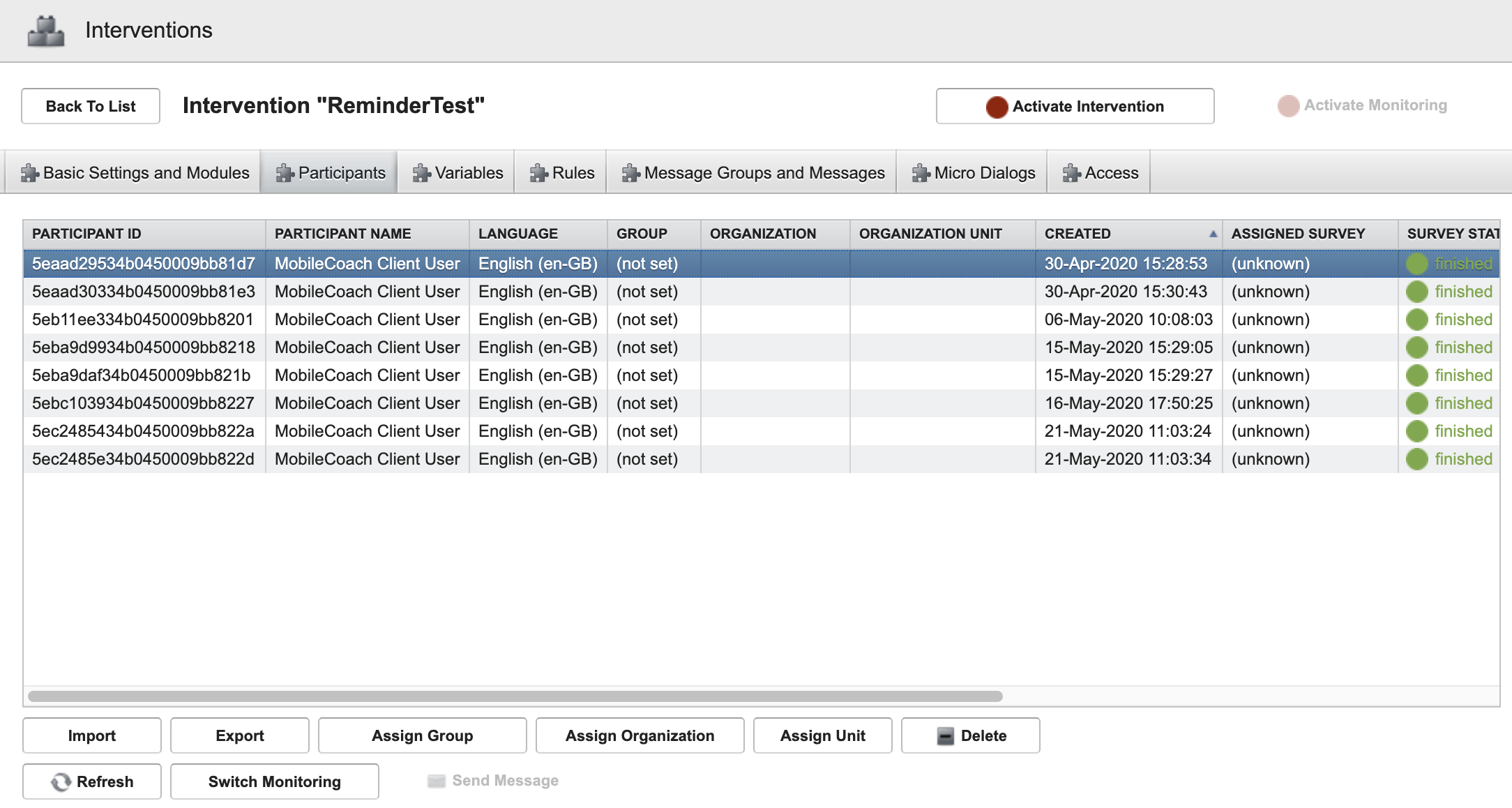

Participants

When the participant opens the app and connects to the server, it immediately creates a new participant. You can see all participants in this list here with some additional participant variables. These variables already exists.

Participants

Participant variables

NameVariable nameExplanation
Participant ID$participantIdentifierUnique ID of the participant
Participant Name$participantNameName of the participant. Default is “MobileCoach Client User”. Is mostly overwritten with the name/nickname of the participant.
Language$participantLanguageSelected language of the user. Be aware that you can define one or different languages that can be used in the app AND in the server.
Group$participantGroupAssigned group of the participant.
Organization$participantOrganizationAssigned organization of the participant.
Organization Unit$participantOrganizationUnitAssigned organization unit of the participant
Created-Participant creation date: Date and time the user opened the app the first time.
Assigned Survey-CURRENTLY NOT IN USE
Survey Status-CURRENTLY NOT IN USE
Data for monitoring available-CURRENTLY NOT IN USE
Intervention status$interventionStatusShows if the participant finished the intervention. The default is 'false'. In the end of the intervention you can set this state to 'true'.
Monitoring status-CURRENTLY NOT IN USE

Action buttons

ButtonsExplanation
ImportImport of participants (needs a .mc file)
ExportExport of participants (generates a .mc file)
Assign GroupAssign a group to a participant.
Assign OrganizationAssign an organization to a participant.
Assign UnitAssign an organization unit to a participant.
DeleteDelete a participant.
RefreshRefreshes the participant list.
Switch MonitoringCURRENTLY NOT IN USE
Send MessageHere you can send a direct message or a message of a message group (SMS or Email) to the participant. Mostly used for test/debugging purposes.

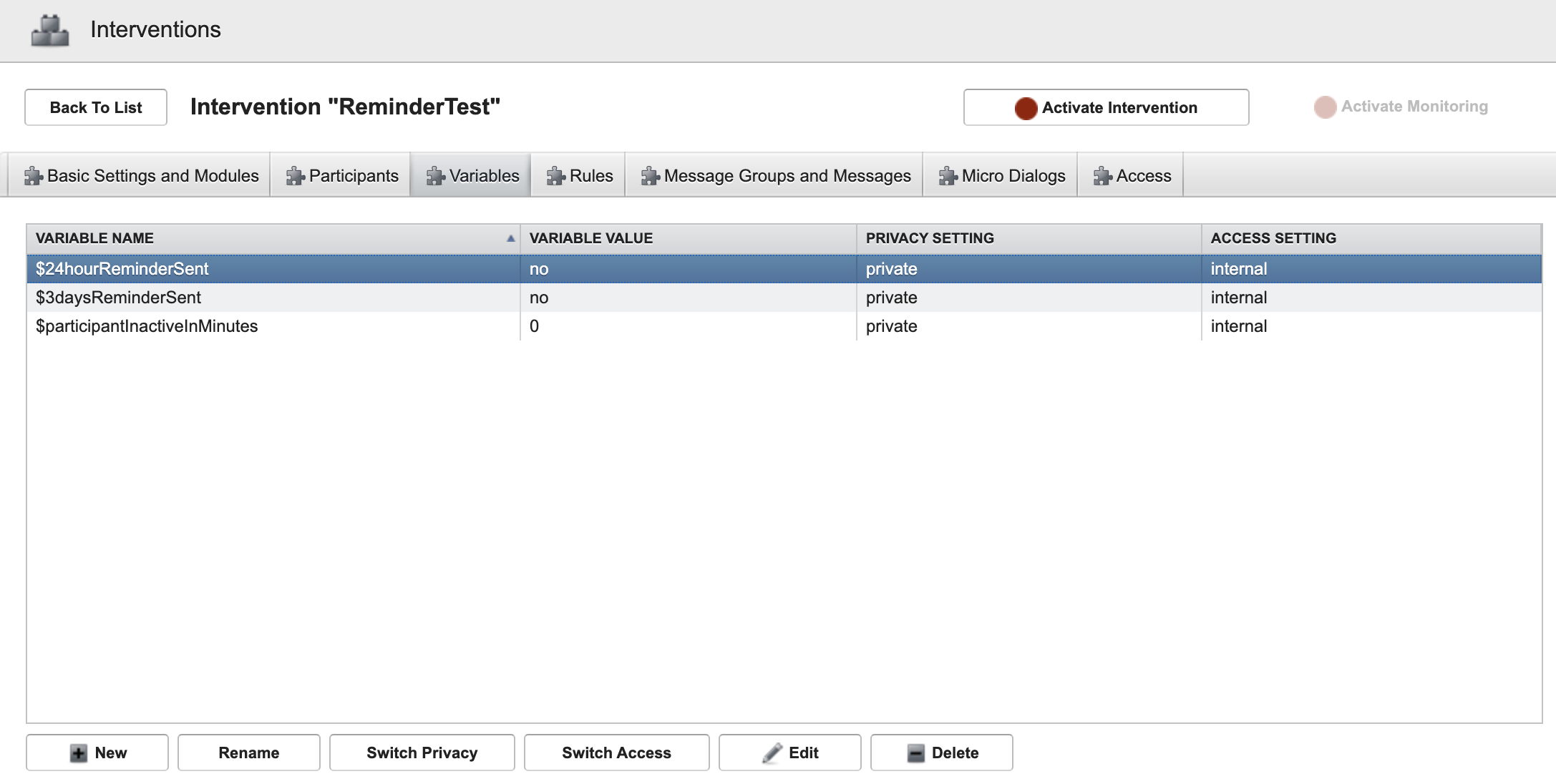

Variables

Here you can define all needed variables, their default value and the privacy/access settings for the intervention.

caution

Please be aware that all variables needs a dollar sign at the start.

Variables

Variable name: Name of the variable. Please be as precise as possible with the naming. Do not forget to add a '$' sign a the variable start.

Variable value: Default value of the variable

Privacy Setting: private is the default setting. shared with group and shared with intervention is currently not in use. shared with intervention and dashboard is required if you can access the variable in the cockpit.

Access Setting: internal is the default. manageable by service means, that the app itself can directly change this variable (like reading out steps from google fit and set it directly). externally readable and externally read and writable allow that external services can (if they have permission) fetch or edit that variable. This is currently not in use.

Action Buttons

ButtonsExplanation
NewCreate a new variable
RenameRename an existing variable
Switch PrivacyChange Privacy Settings (can just have one value)
Switch AccessChange Access Settings (can just have one value)
EditEdit/Change a variable
DeleteDelete a variable

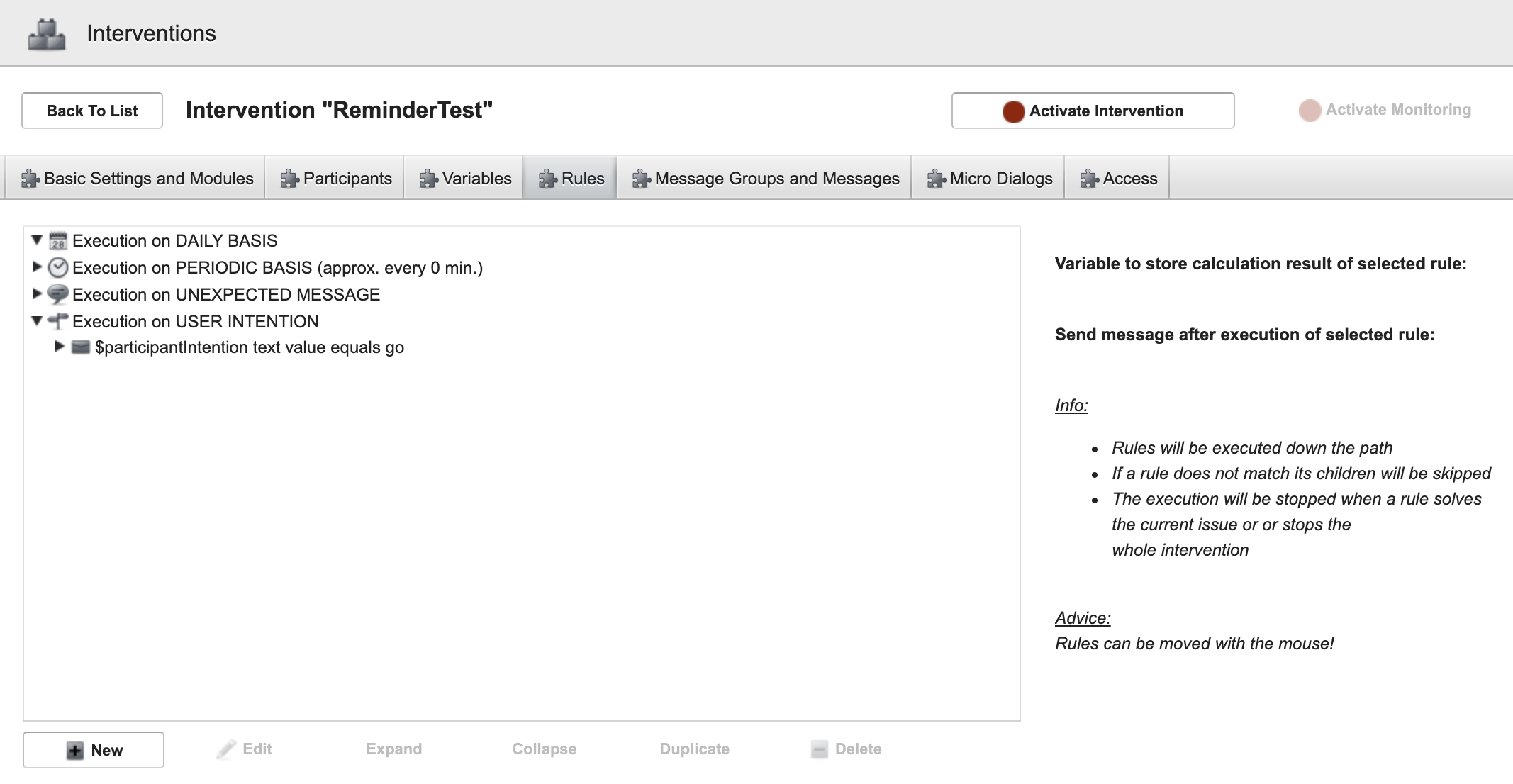

(Main) Rules

These are the main rules for all participants / the whole intervention. This is just a short overview about these main rules. The main rule tree is explained in more detail in a separate doc.

Main Rules

DAILY BASIS

"Daily basis" rules are always executed at around midnight (server time). An example of such a rule could be to increment a variable that indicates how many days the participant has been in the study or the handling of the current study stage.

PERIODIC BASIS

“Periodic basis” rules are executed approximately every five minutes. So here are rules that are needed for quick actions. An example is an escalation-mechanism (could also be solved with daily basis, depends on the urgency).

UNEXPECTED MESSAGE

CURRENTLY NOT IN USE!

USER INTENTION

User intentions are sent from the mobile app. These intents can be catched and reacted to here. For instance which language the participant chose.

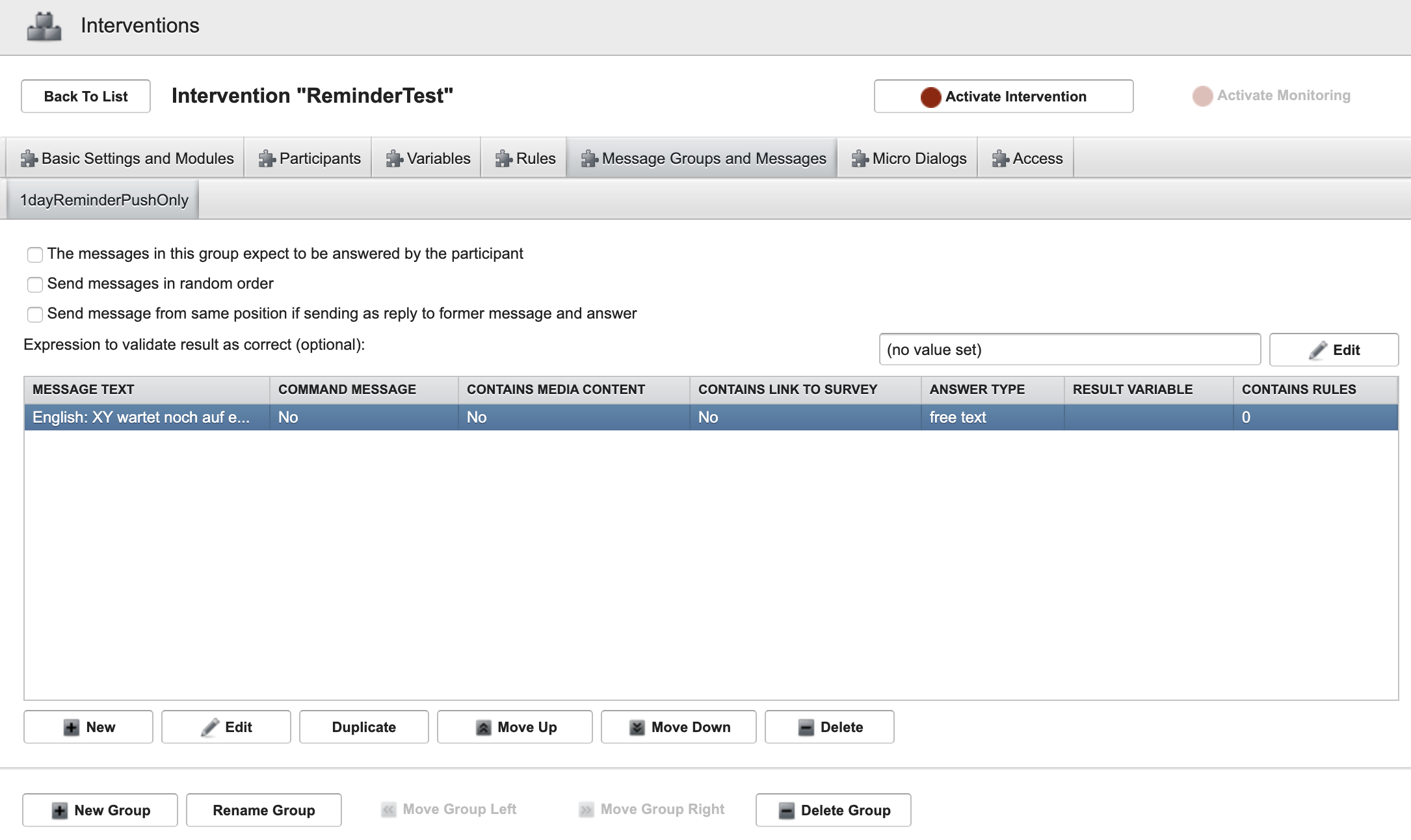

Message Groups and Messages

In this section you can set up message groups, in which you can send additional Push-Notifications, SMS or Emails to the participant, health professional etc. There will be tutorials for the three contact mechanisms that are linked here. [TODO]

Message Groups and Messages

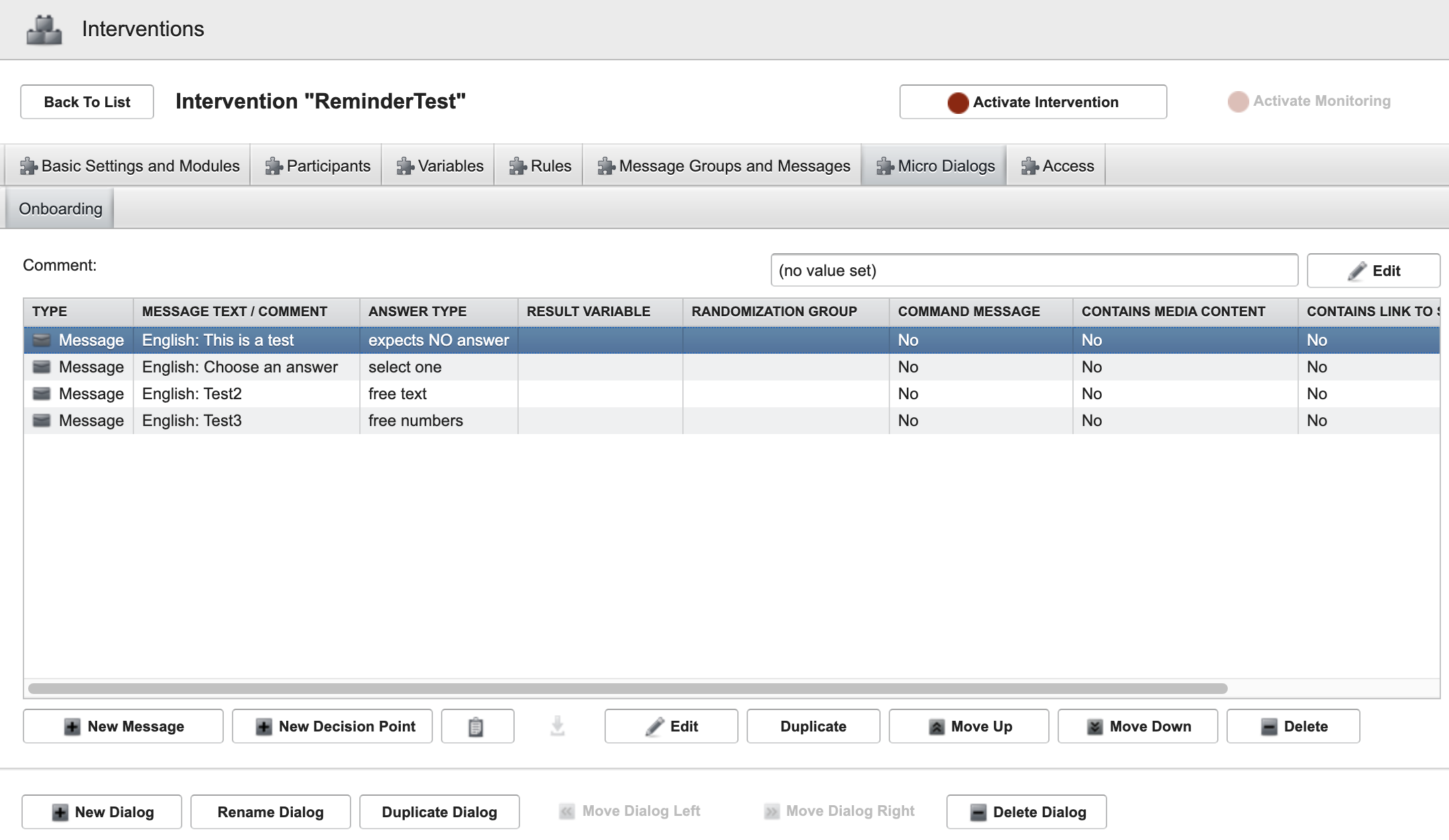

Micro Dialogs

Here you can handle the Micro Dialogs, these are blocks of messages and decision points. Micro Dialogs can have conversational turns but also calculate variables, jump to different micro dialogs etc. So this section is quite complex and will be explained in detail in a separate doc soon. [TODO]

Micro Dialogs

Action buttons (Micro Dialog)

ButtonsExplanation
New DialogCreate a new Micro Dialog
Rename DialogRename an existing Micro Dialog
Duplicate DialogDuplicate an existing Micro Dialog
Move Dialog LeftMove a Micro Dialog to the left
Move Dialog RightMove a Micro Dialog to the right
Delete DialogDelete a Micro Dialog

Action buttons (Messages)

ButtonsExplanation
New MessageCreate a new message within the Micro Dialog
New Decision PointCreate a new Decision Point within the Micro Dialog
EditEdit/Change a message
DuplicateDuplicate a message
Move UpMove the message one up. (The messages/decision point are executed from top to bottom.)
Move DownMove the message one down.
DeleteDelete a message

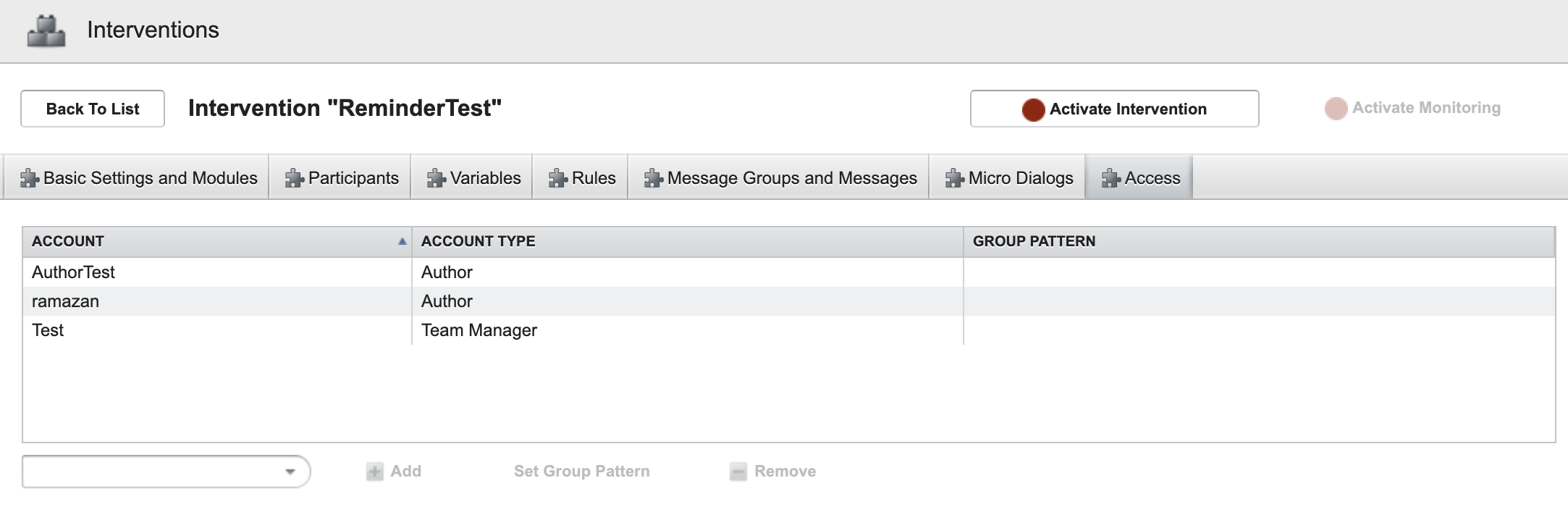

Access

This section is only visible by the admin. Here you can add authors to the intervention, to enable them to work on it. More about the Access Control you can find here: Access Control

Access
